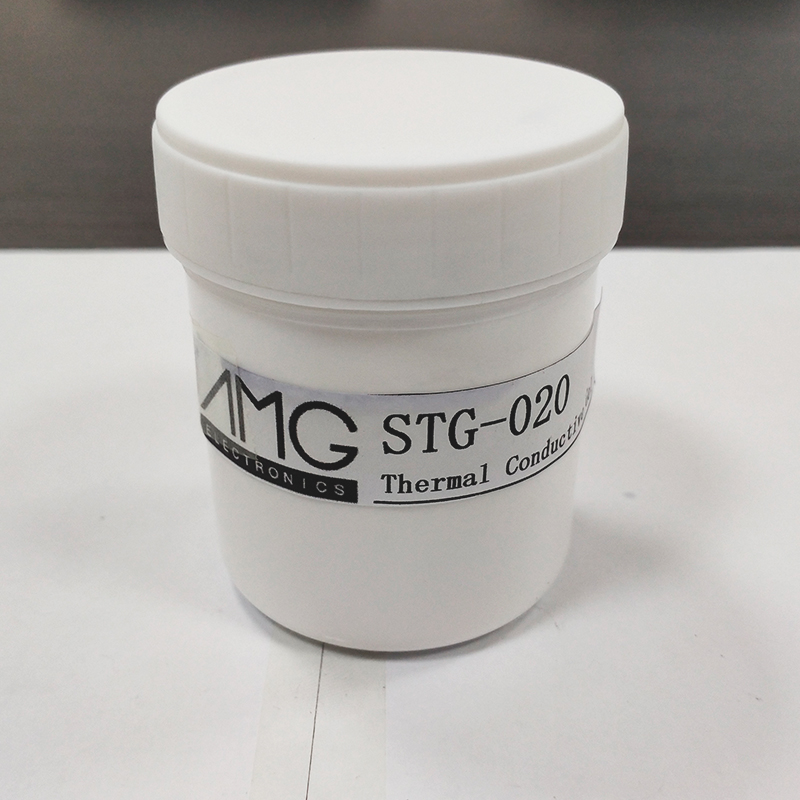

AMG-TG Series Thermal Conductive Grease is silicone-based thermal grease with low flowability and will never dries out. It can be used for applications involving auto-dispensing equipments or by screen-printing AMG-TG series thermal grease can filling surface irregularities and provides a complete solution for application where rigorous heat transfer from heat source to spreader is required. It is also suitable for applications where re-work or frequent assembly/disassembly is required
Features and Benefits：
.Different Thermal Conductivity
.Never Dries
.Easy to assembly
.Suitable for auto-dispensing and screen printing applications
.Cost effective
Applications：
.Computer services: CPU, Heat sink, Memory modules
.LED Lighting, LCD-TV
.Military Electronics
.Power Supplies
.Telecom services, Wireless instruments
.Automotive control services
Product Name | AGM-TG-020 | AMG-TG-040 | AMG-TG-060G | AMG-TG-060W | Test Method |
Color | White | Grey | Grey | White | Visual |
Viscosity | 1850kcps@ 25℃ | 2350kcps@ 25℃ | 2150kcps@ 25℃ | 2150kcps@ 25℃ | Brookfield Rvf#7 |
Specific Gravity g/cm³ | 2.5 | 2.5 | 2.8 | 3.0 | — |
Continuous use Temp | -40℃~+200℃ | -40℃~+200℃ | -40℃~+200℃ | -40℃~+200℃ | — |
Evaporation | 0.15% / 200℃@24hrs | 0.18% / 200℃@24hrs | 0.15% / 200℃@24hrs | 0.15% / 200℃@24hrs | — |
Thermal Conductivity （W.m-1.K-1） | 2 | 4 | 6 | 7 | ASTM 5470 |
Thermal Impedance (℃-in2/w)@50psi | 0.05 | 0.025 | 0.015 | 0.01 | ASTM 5470 |
Composition | Metal oxide filled silicone oil | Metal oxide filled silicone oil | Metal filler filled silicone oil | Metal oxide filled silicone oil | |
Packing | 500g/jar 1KG/jar | 500g/jar 1KG/jar | 500g/jar 1KG/jar | 500g/jar 1KG/jar | — |
Please contact us for other special requirements | |||||
