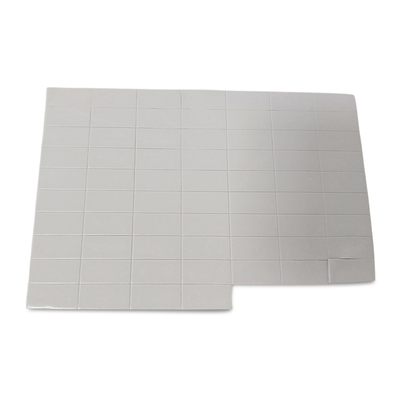

GTP-SF-050 Series thermally conductiveinterface pad materials .this is different with silicone thermal pad material, this is none silicone oil thermal material, this is can meet the hard disk, optical communication, high-end industrial and medical electronics, automotive engine control equipment, special field of telecommunications hardware and equipment demand
Features and Benefits：
.Thermal conductivity 5.0 W/m-K
. Natural tacky
.Very soft & high compressibility
.Good Electrically isolating
.Easy to assembly
.Cost effective
Applications：
.Computer services: CPU, Heat sink, Memory modules
. LED Lighting, LCD-TV
. Military Electronics
. Power Supplies
.Telecom services, Wireless instruments
. Automotive control services
Property | GTP-SF-050 | Unit | Tolerance | Test Method |
Composition | Filled acrylic elastomer | — | ||
Color | Grey | — | — | Visual |
Thermal conductive | 5.0 | W.m-1.K-1 | — | ASTM D5470 |
Thickness | 40-120(1mil=0.0254mm) | mil | ±10% | ASTM D374 |
1.0-3.0 | mm 毫米 | ASTM D374 | ||
Hardness | 60 | Shore 00 | — | ASTM D2240 |
Density | 3.3 | g.cm-3 | — | — |
Temperature Range | -40～+125 | ℃ | — | — |
Breakdown Voltage | >3000 | KV/mm | — | ASTM D149 |
Flame Rating | Meet UL 94 V-0 | — | — | UL 94V0 |
Dielectric Constant | 12.6 | MHz | — | ASTM D150 |
Standard Sheet Size | 200*400 | mm | — | — |
Volume Resistivity | 1013 | ohm-cm | — | ASTM D257 |
Tensile Strength | 32 | psi | — | ASTM D412 |
