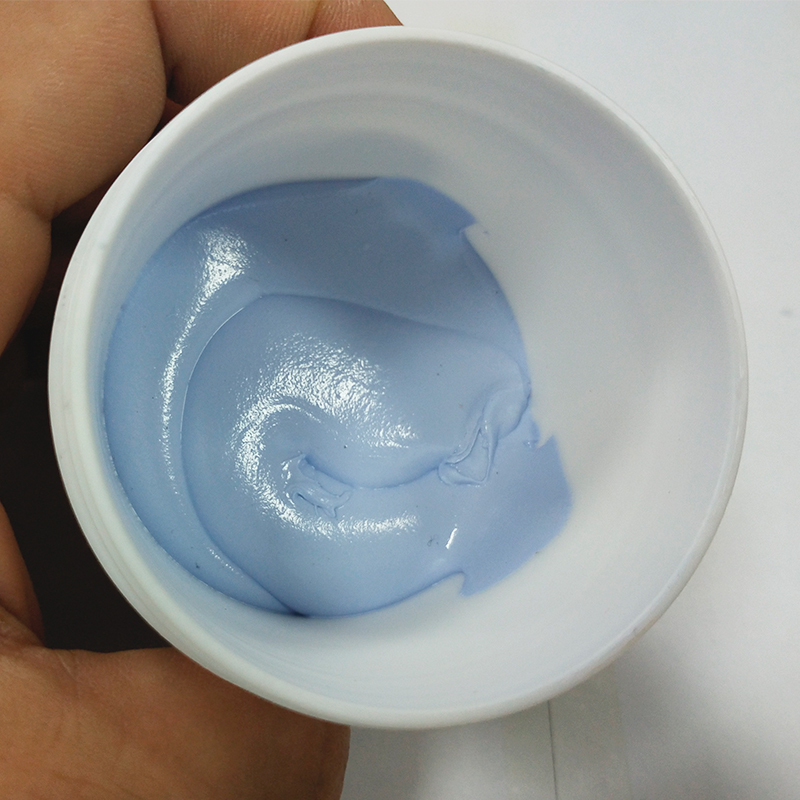

GPU-300 is a high performance thermally conductive gel compound and will not dry out. It has low viscosity for easy and neat application; and can be used for application involving auto-dispensing equipment or stencil screen-printing. GPU-300 is RoHS compliant and halogen-free, offering extra reassurance in applications where hazardous substances are forbidden.
Features and Benefits：
.Thermal conductivity 3.5W/m-K
.Never dries
.RoHS compliant
.Suitable for auto-dispensing and screen printing applications
.Cost effective
Applications：
Heat source to spreader/sink in computer and peripherals
Power conversion equipments
Cooling components to the chassis, types of heat spreader
Wireless communication hardware/ Automotive control units
Power supply/Audio and video component
Micro processor
Property | GPU-300 | Unit | Tolerance | Test Method |
Composition | Filled silicone elastomer | — | ||
Color | (Multi Color) | — | — | Visual |
Thermal conductive | 3.5 | W.m-1.K-1 | ±10% | ASTM D5470 |
Flow Rate, 30cc syringe with no tip attachment 0.100” orifice, 90psi | 20 | g/min | ±4 | AMG Test method |
Density | 3.3 | g.cm-3 | ±10% | — |
Temperature Range | -40～+200 | ℃ | — | — |
Breakdown Voltage | 5 | KV/mm | — | ASTM D149 |
Volume Resistivity | 1000 | ohm-cm | ASTM D257 | |
Flame Rating | UL 94 V-0 | — | — | UL 94 |
RoHS Compliant | YES | — | — | — |
Shelf Life, months from date of manufacture | 12 | month | — | — |
Please contact us for other special requirements | ||||
Thermal conductive is based on the AMG the method ,the test machine is use ASTM D5470test method ASTM D5470
The above information and instructions are believed to be reliable but not as a legal interpretation or guarantee. The user must conduct sufficient test and confirm the above information for users of any product and special application.
