Best Thermal Conductive Pad For Heat Sink

Thermal Conductive Pad, find complete details about best thermal conductive pad for heat sink - AMG
Quantity:
Product Description



GTP-015 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. Best Thermal Conductive Pad For Heat Sink

主图02


Features and Benefits:

.Thermal conductivity 1.5 W/m-K

Natural tacky

Very soft & high compressibility

Good Electrically isolating

Easy to assembly

Cost effective

Applications:

.Computer services: CPU, Heat sink, Memory modules

.LED Lighting, LCD-TV

. Military Electronics

.Power Supplies

.Telecom services, Wireless instruments

.Automotive control services

Property

GTP-015

Unit

Tolerance

Test Method

Composition

Filled silicone elastomer

Color

 Multi Color

Visual

Thermal conductive

1.5

W.m-1.K-1

ASTM D5470

Thickness

10-800(1mil=0.0254mm)

mil

±10%

ASTM D374

0.254-20

mm

ASTM D374

Hardness

20-60

Shore 00

ASTM D2240

Density

2.05

g.cm-3

Temperature Range

-40~+200

Breakdown Voltage

>3000(0.25mm~0.5mm)

V

ASTM D149

>5000(>0.5mm)

Flame Rating

UL 94 V-0

UL 94

(UL FileE348291)

Dielectric Constant

4.9

MHz

ASTM D150

Standard Sheet Size

300*400

mm

Volume Resistivity

1013

ohm-cm

ASTM D257

Tensile Strength

25

psi

ASTM D412

Please contact us for other special requirements  such as :

.With or without adhesive

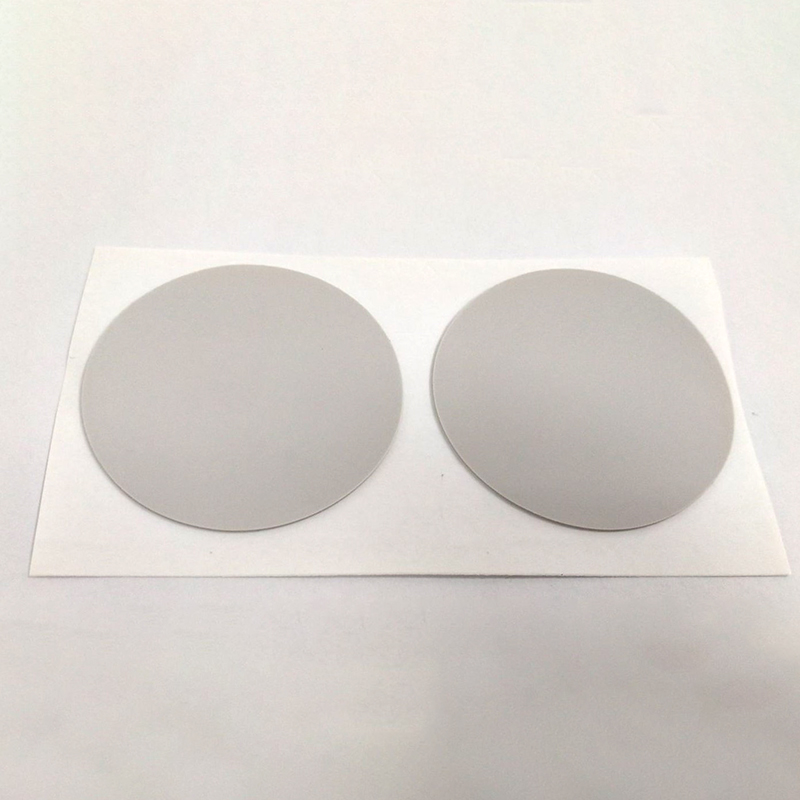

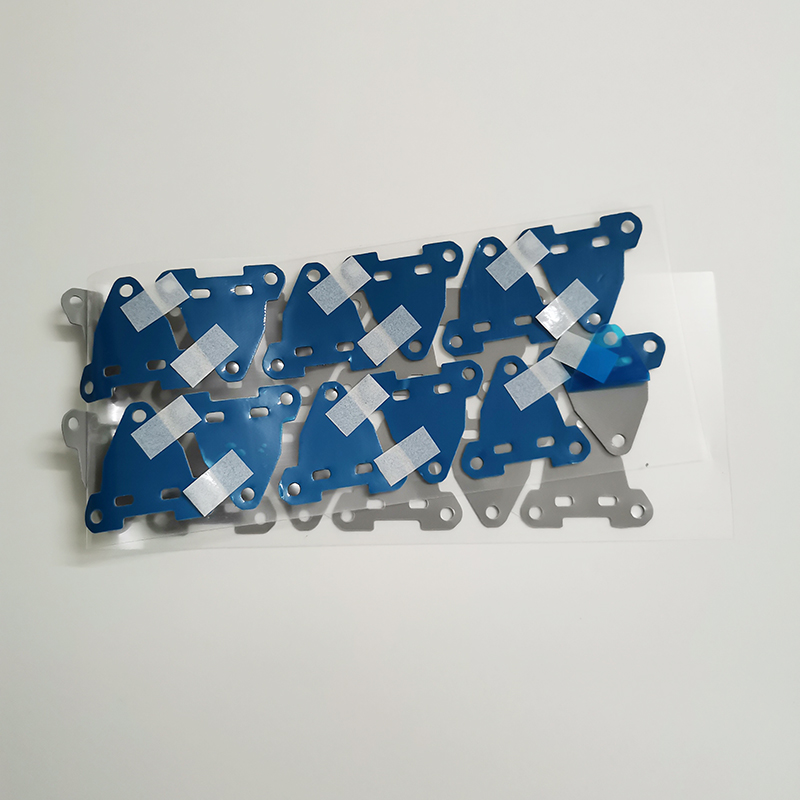

.Custom die-cut shapes


.Special requirements: hardness, color, thickness, sizes, different structure composition


.Sample request
