Features and Benefits
● Thermal conductivity 1.5W/m-K
● Very soft & high compressibility
● Natural tacky
● Good Electrically isolating
● Easy to assembly
Applications

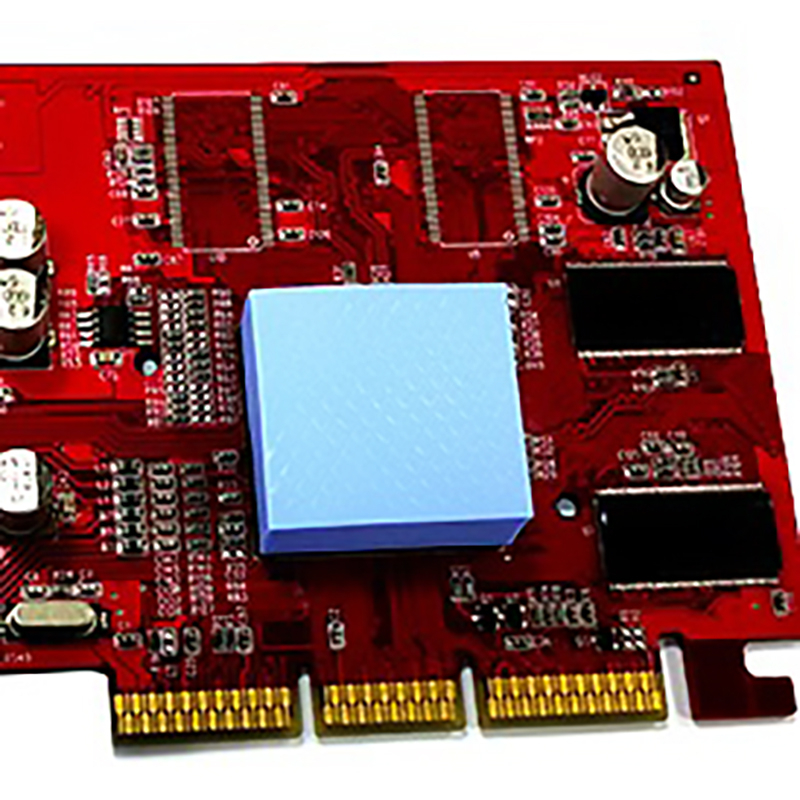

● Computer services: CPU
● Heat sink, Memory modules
● LED Lighting, LCD-TV
● Military Electronics
● Power Supplies
● Telecom services
● Wireless instruments
● Automotive control services
Property | Data | Test Method |
Composition | Non-silicone | |
Colo | Multi color | Visual |
Thermal conductive | 1.5W.m-1.K-1 | ASTM D5470 |
Hardness | 30～60 Shore 00 | ASTM D2240 |
Density | 2.0 g.cm-3 | ASTM D792 |
Temperature Range | -40℃～+125℃ | — |
Breakdown Voltage (V/mm) | >10000 V | ASTM D149 |
Flame Rating | UL 94 V-0 | UL 94 V-0 |
Dielectric Constant@1MHz | 3.9 | ASTM D150 |
Standard Sheet Size | 200*400 mm | — |
Volume Resistivity | 3.0*1013 ohm-cm | ASTM D257 |
Tensile Strength | 28 Psi | ASTM D412 |
The Information And Statements Herein Are Believed To Be Reliable But Are Not To Be Construed As A Warranty Or Representation For Which We Assume Legal Responsibility. Users Should Undertake Sufficient Verification And Testing To Determine The Suitability For Their Own Particular Purpose Of Any Information Or Products Referred To Herein. | ||
Availability
● 0.02 inch to 0.2 inch(0.5mm to 5.0mm)
● Stand sheet size is 200mmx400mm
● A is meet add addition PSA A1=one side PSA, A2=two side PSA
Examples
● GTP-SF-015(50Shore00) =special hardness 50Shore00
● GTP-SF-015-100 =0.1 inch thick material
● GTP-SF-015FG-010=0.01 inch material with Fiberglass
● GTP-SF-015A1(3M467)-100=0.1 inch thickness material with 3M467 one side
