Flexible Graphite Sheet AMG-GRP-200
Home » Products » Graphite Sheet » Flexible Graphite Sheet AMG-GRP-200

Flexible Graphite Sheet AMG-GRP-200

Flexible Graphite Sheet, find complete details about Flexible Graphite Sheet AMG-GRP-200 - AMG
Quantity:
Product Description

AMG-GRP-200is one product coating thin pressure-sensitive adhesive tape with ultra-thin PET transparent: total ultra-thin design, suitable for thin film design, through the heat to heat radiation does not affect the state of flexible graphite sheet layer (metal layer) thermal conductivity; according to the need of design, can be edging design in die cutting and with good insulation; have good adhesion in use.

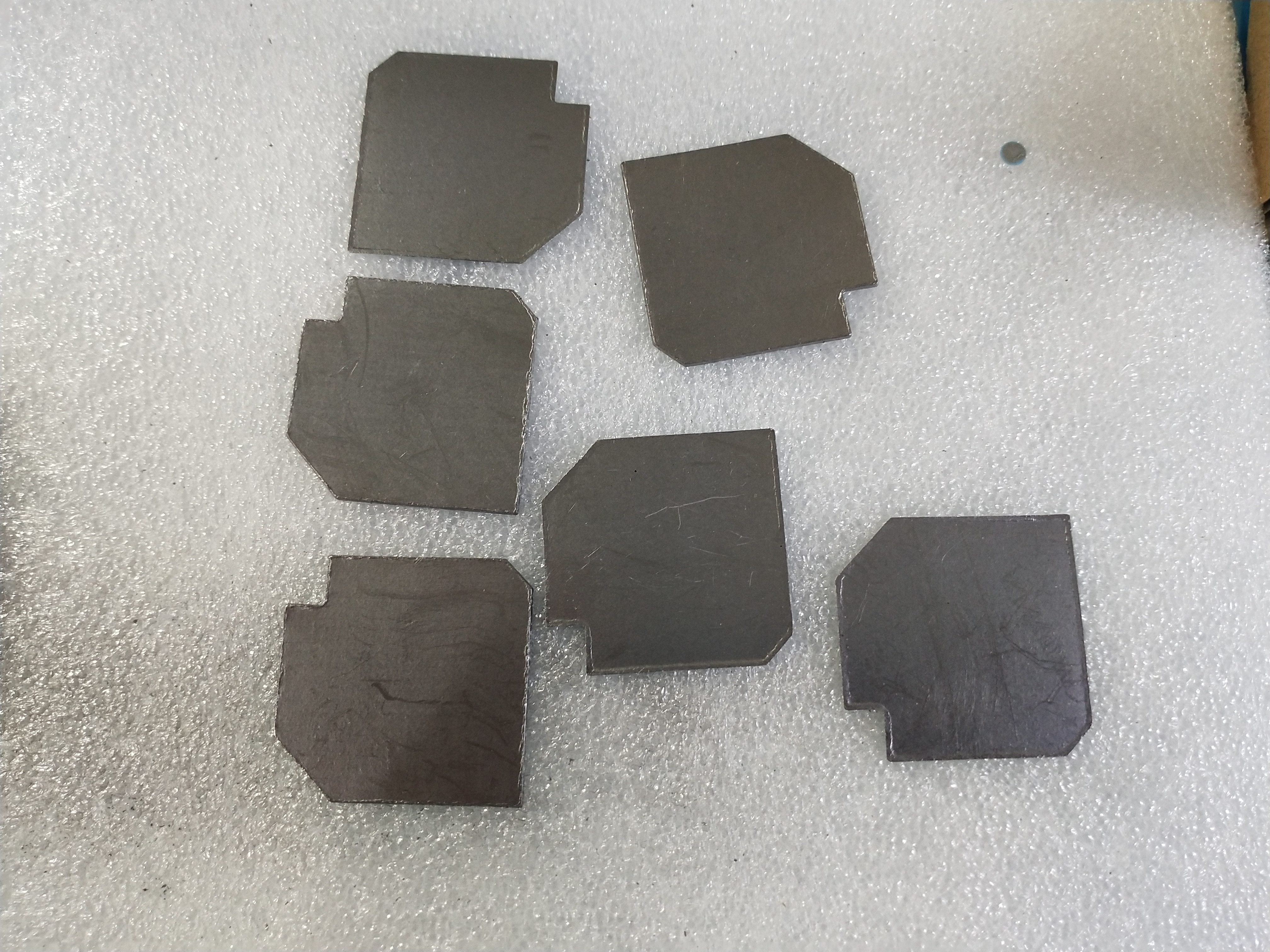

flexible graphite sheet

Features and Benefits:

.Synthetic graphite is oriented to a high polymer as raw

.material, high thermal conductivity materials

.This material forms a large area graphene heat conduction

.layer has a very high rate of.


Applications :

.Bonding and fixing of graphite sheet and ferrite

LCD backlight used in the reflective panel and screen, backlight frame fixed

Micro-electronic machines fixed

Automotive control services


Property

AMG-GRP-200

Unit

Tolerance

Test Method

Composition

Filled Graphene

Color

      Black

Visual

Thermal conductive

>900

W.m-1.K-1

Graphene Thickness

17/25/40

μm

±10%

ASTM D374

PSA Thickness

12

μm

ASTM D374

PSA Color

Black(黑色)

Visual

PSA adhesive force

500

(g/25mm)

JIS Z 0237 8

Density

>1.6

g.cm-3

Temperature Range

-40~+400

Heat Capacity  (50℃)

>5000(>0.5mm)

J/gk



Electric conductivity

20000

S/cm

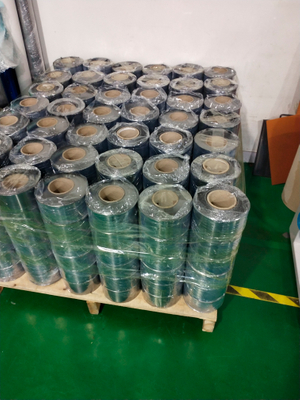

Standard Sheet Size

W 90mm/110mm/120mm/130mm/150mm / 165mm / 180mm * L 100m

mm

Tensile Strength

22

Mpa

ASTM D412

The ideal place to use is room temperature. If the tape in the natural environment such as low temperature under low temperature in winter, should be in a warm environment until the tape is 20°C, and use within3 hours.


Store in original carton at 70°F (21°C) and 50% relative humidity. If stored under proper conditions, product retains its performance and properties for 6 months from date of manufacture.

Please contact us for other special requirements  such as :

With or without adhesive

Custom die-cut shapes

Sample request
