Ultra Soft Thermal Conductive Gap Filer Pad | AMG

We can provide professional OEM supporting services for thermal Conductive Pad,thermal conductive grease, phase change material, thermally conductive gel, thermal conductive tape etc | KCY
Quantity:
Product Description

We can provide professional OEM supporting services for thermal Conductive Pad, thermal conductive grease, phase change material, thermally conductive gel, thermal conductive tape etc | KCY

微信图片_20201022204906

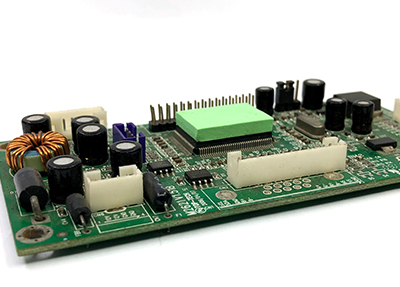

GTP-015 Series Thermal Conductive Gap Filler are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or

even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.


Features and Benefits:

.Thermal conductivity 1.5 W/m-K

. Very soft & high compressibility

. Natural tacky

.Good Electrically isolating

.Easy to assembly


Applications:

 Computer services: CPU,

.Heat sink, Memory modules

. LED Lighting, LCD-TV

. Military Electronics

. Power Supplies

. Telecom services,

.Wireless instruments

.Automotive control services


Property

Data

Test Method

Composition

Silicone elastomer


Color

Multi color

Visual

Thermal conductive

1.5W.m -1 .K -1

ASTM D5470

Hardness

10~60 Shore 00

ASTM D2240

Density

2.05g.cm -3

ASTM D792

Temperature Range

-40℃+200℃

Breakdown Voltage (V/mm)

>10000 V

ASTM D149

Flame Rating

UL 94 V-0

UL 94

(UL FileE348291)

Dielectric Constant

4.9MHz

ASTM D150

Standard Sheet Size

300*400 mm

Volume Resistivity

3.0*10 13 ohm-cm

ASTM D257

Tensile Strength

25Psi

ASTM D412

 The information and statements herein are believed to be reliable but are not to be construed as a warranty or representation for which we assume legal responsibility. Users should undertake sufficient verification and testing to determine the suitability for their own particular purpose of any information or products referred to herein.


Availability:

. 0.004 inch to 0.4 inch(0.1mm to 10.0mm)

.Stand sheet size is 12"x 16"

. FG designates Fiberglass

.DC1 designates proprietary option eliminating tack form one side

.A is meet add addition PSA A1=one side PSA, A2=two side PSA


GTP-015-TDS_07


Examples:

.GTP-015(80Shore00) =special hardness 80Shore00

. GTP-015-100 =0.1 inch thick material

.GTP-015FG-010=0.01 inch material with Fiberglass

. GTP-015DC1-100=0.1 inch thickness material with one side none-tacky option

.GTP-015A1(3M467)-100=0.1 inch thickness material with 3M467 one side


GTP-015-TDS_10
